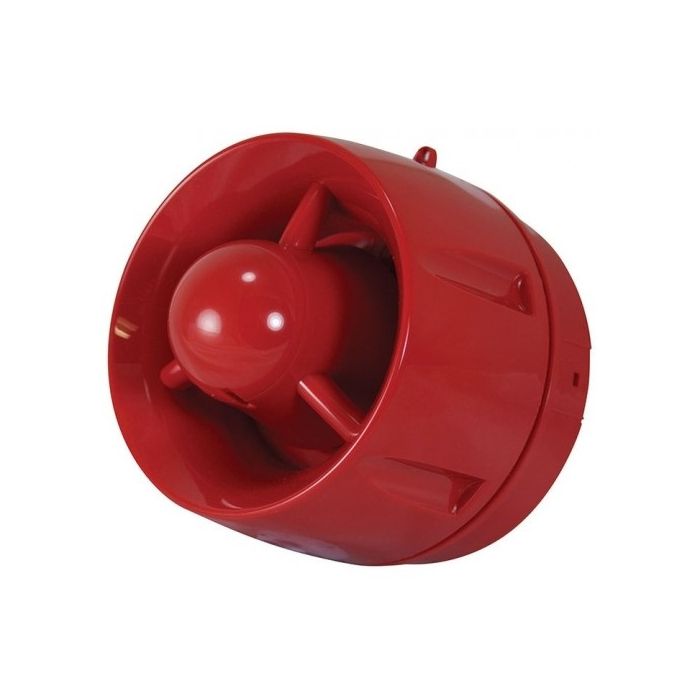

C-Tec BF430C/CC/SR ActiV Conventional Hi-Output 100dB(A) Wall Sounder - Shallow Base

The ActiV Hi-Output range of conventional sounders and combined sounder visual alarm devices (VADs) are designed for use with C-TEC’s range of fire panels and other compatible third-party panels. However, compatibility testing with third-party panels is recommended to ensure correct operation. With a 100 dB(A) peak sound output @ 1 m, their purpose is to visually and audibly alert building occupants of a fire alarm. Units are supplied with either a shallow or deep base, in a red plastic enclosure.

The devices offer low current consumption, high sound output, 31 selectable primary tones with selectable secondary tone set and two selectable volume levels. Tones and volume levels are changed using the device’s 8-way DIP switch.

Key Features:

• LPCB certified to EN54-3 (Sounders).
• Impressive 100dB(A) sound output @ 1m.
• 31 selectable primary and secondary tone pairs and two volume levels (high and low)
• Alarm Current at 30Vdc = 5.5mA.
• Alarm Current at 18Vdc = 3.8mA.
• IP21C rated.
• Manufactured in the UK by C-TEC.
