Cranford Controls RIU-R12B 12V Auxiliary Relay - Surface (503-004)
SKU
RIU-R12B
AED74.41
AED89.29
- Manufacturer : Cranford Controls
- Part Number : RIU-R12B
Cranford Controls RIU-R12B 12V Auxiliary Relay
Product Overview
The R12 relay is intended to switch addtional field devices via the two relay outputs supplied. An LED is mounted so that it remains visible during the relay operation.
The supply voltage to the relay coil may be continued through the device via the additional terminals supplied. Each device is reverse polarity protected.
Features
- PCB version for mounting inside PSU’s, panels, etc.
- Self contained version in a metal enclosure

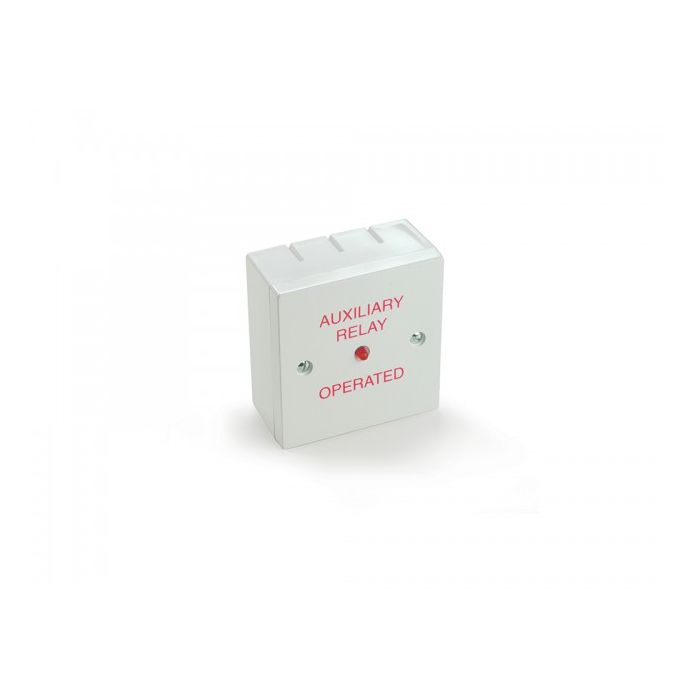

- Single gang plate version has ‘Auxiliary Relay Operated’ text
Technical
| Type | PCB | Surface mount |
| Voltage range (Vdc) | 9 – 18 | |
| Nom. current consumption (mA) | 44 | |
| Relay contact rating | 230Vac 5A | |
| Coil impedance (?) | 275 | |
| Protection rating | n/a | IP43 |
| Boxed weight (kg) | 0.051 | 0.15 |
| Colours available | n/a | white |
