Haes AOV-5 Automatic Opening Vent Control Panel
SKU
AOV-5
AED2,315.15
AED2,778.18
- Manufacturer : Haes
- Part Code : AOV-5
- Automatic Opening Vent Control Panel
- 5A Standard Spec Version
- Single Zone Conventional or Twin Wire Detector Circuit
- Vent Status Indications & Controls
- Vent Control Switch Input
- One Man Walk Tests
- Twinwire Selectable
- Panel Dimensions : W 450 x H 300 x D 110mm

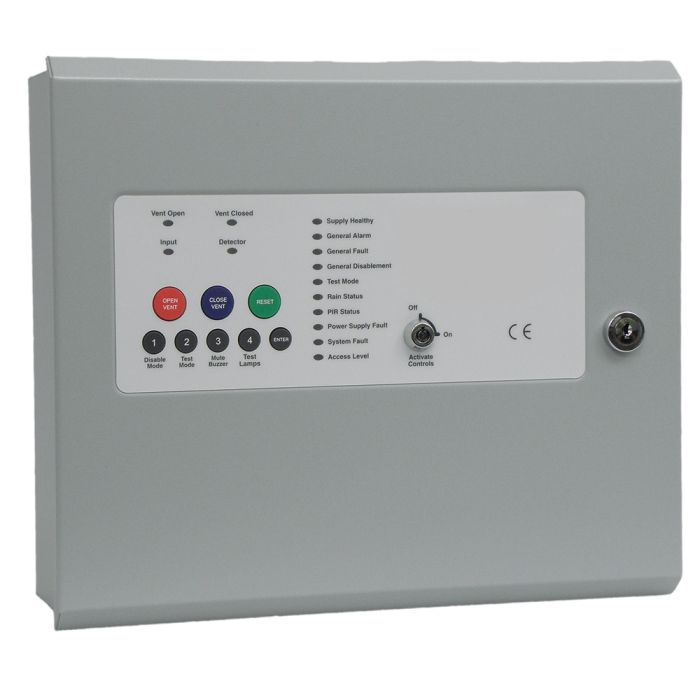

Haes AOV-5 Panel
PLEASE NOTE : This product is now obsolete and has been superseeded by the Haes MZAOV-1002 version. Please see the related products below.
The Haes AOV-5 is a single zone smoke vent control panel designed to control 24vdc actuators or magnets. Typically used in staircase lobbies, corridors or smoke extract shafts.
The panel has battery backup capability and assures that actuators can be powered in the event of mains failure. Vent controls and indications are provided on the front of the panel with integral control inputs to accept signals from remote contacts, smoke detectors, manual controls and emergency push buttons.
