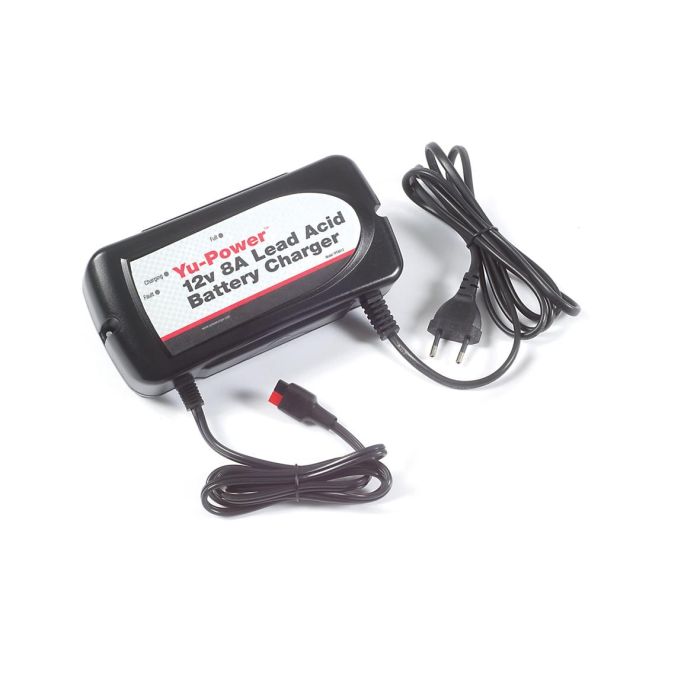

Yuasa Yu-Power YPC8A12 Battery Charger - 12 Volt

The Yuasa Yu-Power YPC8A12 is a lead acid type battery charger for charging 12 volt batteries with capacities between 30Ah and 100Ah.

This charger is supplied complete with a UK type plug adaptor and torbury to terminal clip adaptor.

The Yuasa Yu-Power YPC8A12 is an intelligent charger and utilises a multi-stage and proportional timed charging managment system.  It is suitable for charging valve regulated lead acid, car and motorcycle batteries.  It features a high frequency switch mode design along with a multi-level charging protection.

Yuasa Yu-Power YPC8A12 Charger Specification

• Input Voltage : 220 - 260 Volts AC
• Input Voltage Frequency : 50 Hz
• Output Voltage (Absorption) : 14.4 Volts DC
• Output Voltage (Float) : 13.65 Volts DC
• Output Current : 8A

Dimensions

• Length : 190mm
• Width : 92mm
• Height : 55mm
• Mass (Typically) : 0.86Kg

Plugs & Connectors

• Input : European (Supplied With UK Plug Adaptor)
• Output : Torbury Type (Supplied With Torbury To Clip Adaptor)

Power Leads

• Input : 1.8 Metres
• Output : 1.2 Metres
• Vehicle / Trailer To Clips : 0.6 Metres

Operating Environment

• Temperature : 0 Degrees Celcius to 40 Degrees Celcius
• Humidity : 90 Percent Non Condensing

Battery

• Suitable Battery Capacity Range : 30 to 100Ah
• Battery Chemistry : All Lead Acid Types
