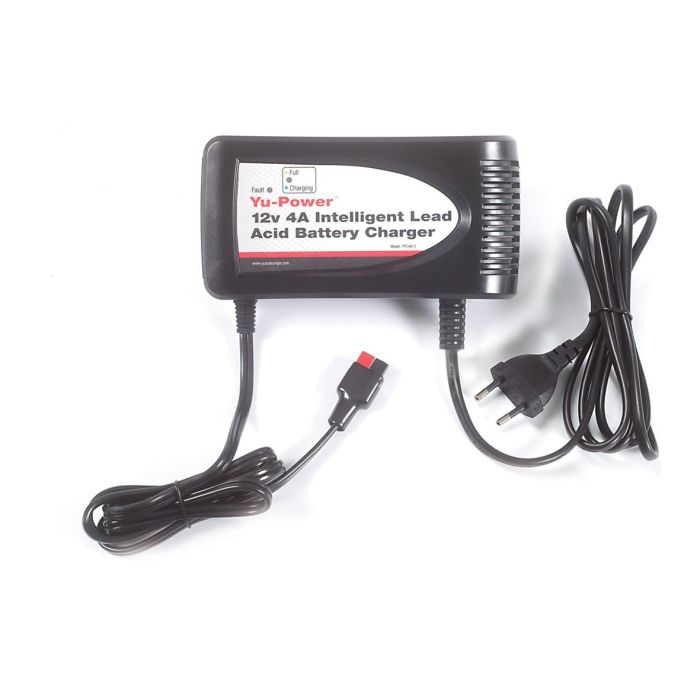

Yuasa Yu-Power YPC4A12 Battery Charger - 12 Volt

SKU
YPC4A12
Please Contact For Price
  • Manufacturer : Yuasa Yu-Power
  • Part Number : YPC4A12
  • Intelligent Valve Regulated Sealed Lead Acid 12 Volt Battery Charger
  • Suitable for VRLA, Car & Motorcycle Batteries
  • Supplied With UK Plug Adaptor
  • Supplied With YPCCLIP Adaptor (Torbury Connector To Terminal Clip)
  • Suitable For Charging 12V VRLA Batteries From 12Ah to 40Ah
  • Output Current : 4A

Yuasa Yu-Power YPC4A12 Battery Charger - 12 Volt

Please Note : This product is now obsolete and no longer in production. The manufacturer recommends using the Yuasa YCX6 Battery Charger as an alternative. Please see the related products below.

The Yuasa Yu-Power YPC4A12 is a lead acid type battery charger for charging 12 volt batteries with capacities between 12Ah and 40Ah.

This charger is supplied complete with a UK type plug adaptor and torbury to terminal clip adaptor.

The Yuasa Yu-Power YPC4A12 is an intelligent charger and utilises a multi-stage and proportional timed charging managment system.  It is suitable for charging valve regulated lead acid, car and motorcycle batteries.  It features a high frequency switch mode design along with a multi-level charging protection.

Yuasa Yu-Power YPC4A12 Charger Specification

  • Input Voltage : 220 - 260 Volts AC
  • Input Voltage Frequency : 50 Hz
  • Output Voltage (Absorption) : 14.4 Volts DC
  • Output Voltage (Float) : 13.65 Volts DC
  • Output Current : 4A

Dimensions

  • Length : 164mm
  • Width : 85mm
  • Height : 55mm
  • Mass (Typically) : 0.62Kg

Plugs & Connectors

  • Input : European (Supplied With UK Plug Adaptor)
  • Output : Torbury Type (Supplied With Torbury To Clip Adaptor)

Power Leads

  • Input : 1.8 Metres
  • Output : 1.2 Metres
  • Vehicle / Trailer To Clips : 0.6 Metres

Operating Environment

  • Temperature : 0 Degrees Celcius to 40 Degrees Celcius
  • Humidity : 90 Percent Non Condensing

Battery

  • Suitable Battery Capacity Range : 12 to 40Ah
  • Battery Chemistry : All Lead Acid Types
